AC120V 12*6mm 288 Chips Cob Flexible Led Strip lights

YH-HRF288COB120-WW

minimum order:

1 meter

Supply Ability:

1000000.0meter / Month

Country of Origin:

Shenzhen

Quantity:

Contact Now

add to cart

Description

What is COB?

COB, short for Chip-on- Board, is a soldering method that directly mounts

multiple chips directly onto a metal-based printed circuit board.

The original way is SMD on PCB, this new way to reduce material and cost

to achieve high efficiency lighting products.

What is COB tape light?

COB tape light, chips directly mounted on a flexible PCB and encapsulated with fluorescent tube to achieve light beam line effect.

This beam effect of COB tape light is more soft and looks dotless.

This is AC120V contious line outdoor cob led strip, could be 50meters to be one length.

Different with original way of mounting SMD to PCB, it is save material cost and machine fee to achieve high efficiency and high performance strip lighting products.

Specifications

• Model Number: YH-HRF288COB120-XX

• Input Voltage: AC110-130V

• Beam Angle: 140°

• Chips Qty: 288chips/meter

• Power: 10Watts/meter

• Cut Unit: 25cm

•Luminous flux: 700-800lm/meter

•IP Grade: IP65 waterproof

•Dimension: 12*6mm (W*H)

•Available Colors: 2700K, 3000K, 4000K,

6000K, Red, Blue, Green

•Operating Temperature: -20°C to +50°C

•Package: 50meters/roll, 2rolls/carton

•Certificates: CE

•Warranty: 2 Years

How to make outdoor cob led strip?

Step 1: Resistors on PCB

Step 2: Chips with Tin Paste on PCB

Step 3: Reflow-High temperature for
finished PCB with chips and resistors

Step 4: QC test for Semi-finished COB strip light

Step 5: Fluorescent Powder glue onto PCB

Step 6: Put glued cob led strip into the oven

Step 7: Cover PVC of PCB to finish production

Competitive Advantages of cob led strip dimmable

1. Uniform Light Distribution

Compare with SMD tape light, cob light price produce an evenly distributed light output, ensuring a uniform and consistent illumination without light spots.

This uniformity in lighting enhances the visual appeal and creates a pleasant lighting environment. With SMD tape light, its bigger diode are too dazzling to our eyes even we could not eyes on diodes directly for long time.

But with cob light price, it is more soft and uniform light effect. It is eyes-caring to install COB tape light for our lighting decorations.

cob led strip dimmable

2. Cost-Effective

Our cob led strip dimmable utilize advanced manufacturing techniques that result in a cost-effective solution.

By using wire-free technology, the use of copper wire and SMD components is reduced, reducing material costs and labor requirements.

This leads to a lower overall product price, making it more affordable for customers.

3. High Luminance and Efficient Power

Our outdoor cob led strip offer high luminance and power output, providing a brighter and more impactful lighting experience.

The use of high-efficiency LED chips ensures that the light output is maximized while using less power, making it a more environmentally friendly lighting solution.

4. Easy Installation

Our cob led strip dimmable feature a new connection method that without the need for using pins during installation.

This makes the installation process faster, easier, and more convenient, reducing the time and effort required for installation.

5. Versatile Application

The 50cm cutting unit of cob led strip dimmable offers flexibility in indoor and outdoor decorative lighting projects.

This allows for quick and easy installation, providing a convenient solution for various lighting projects needs.

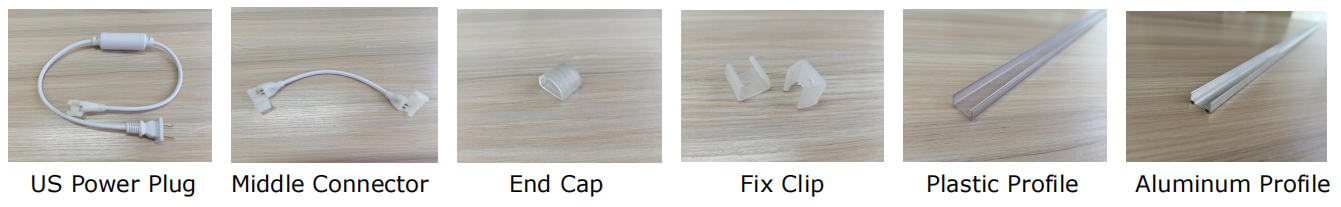

Accessories

How to make connections for Cob led strip dimmable?

Packaging

Our Certificates

Product Testing

All of ouroutdoor cob led strip are strictly go though multiple testing steps to ensuring quality. Our raw materials testing phase begins with a thorough examination of the incoming LEDs, resistors, and other components in our

laboratory equipment.

Once the assembly of cob led strip dimmable begins, we conduct rigorous testing on the semi-finished products. This stage involves checks for electrical continuity, uniformity of light output, and temperature rise under

operationalconditions.

Finally, before each LED light strips packing, it undergoes a comprehensive finished products testing phase. This includes checks for compliance with international safety standards, as well as an assessment of the

overall performance and durability.

cob led strip dimmable

Why choose BET to be your outdoor cob led strip Supplier

We BET understand the importance of choosing a reliable and trustworthy supplier. Our company has built its reputation on providing high-quality products and services to our customers, and we take pride in being a relaible partner in your business endeavos.

Quality Prodcuts in Shenzhen

BET offers a wide range of products, all of which are manufactured to the highest standards. All our products we conduct regular checks and tests to ensure consistent performance. All our COB tape light has pass CE, ETL test.

Competitive Price

We provide our partners with our competitive wholesale prieces without compromising on quality, which help you save money while meeting your business needs.

Fast Delivery

We provide fast delivery with automated production lines and a professional team. Small order takes 3-10days and bulk order takes 10-25days.

Customized Services

We understand that every customer has unique needs, and that's why we offer fully customized services for our products. Whether its the lenght, specifications, color, color rendering index, lumen output, power rating, or packaging, we can tailor our products to meet your specific requirements.

Low MOQ

We support our customers free sample or small trial order to test market. This will help our partners more easier to expand the local market.

After-sales Service

Our dedicated team of experts is available 24/7 to assist you with any questions or issues you may have with our products. Whether it's a technical issue, a question about product usage, or a request for additional information, we're here to help.

RFQ

1. What is your MOQ for this Outdoor cob led strip?

No MOQ, we support with small trial order to help our customers to test local market.

2. Can you provide free samples of cob led strip dimmable?

Yes, we can provide free samples for our customers to test local market.

3. How is your package of cob light price?

It is 50meters per roll, 2 rolls to be packed to a plastic reel and then packed into an carton.

4. What is your delivery time for this outdoor cob led strip?

Small order is 3-10days; bulk order is 10-25days.

5. How to ship the goods? And how many days to be delivered?

Shipping ways depend on our customers' demand. If go by air, like DHL/Fedex/UPS, it take about 5-10days.

If go by sea, it take about 24-45days according to the delivery address.

6. This outdoor cob led strip is cuttable?

Yes, it is cuttable. Every 25cm Unit cut.

7. Is this cob led strip dimmable dimmable?

Yes, it is dimmable. You need connect with dimmer to make its dim function.

8. Can we make customized design for this COB led strip dimmable?

Yes, the CCT, colors, CRI, length, package could be customized on your requirement.

9. Is this outdoor cob led strip waterproof?

Yes, it is waterproof IP65 after applying glue on each connectos and end caps. But this COB strip light could not be used inside of water or pool as it is AC120V voltage.
