CE&ROHS led strip high voltage 220V led rgb strip rf controller

YH-HC06
minimum order:
50 meters
Supply Ability:
100000meters / Week
Country of Origin:
Shenzhen
Quantity:
Contact Now
add to cart

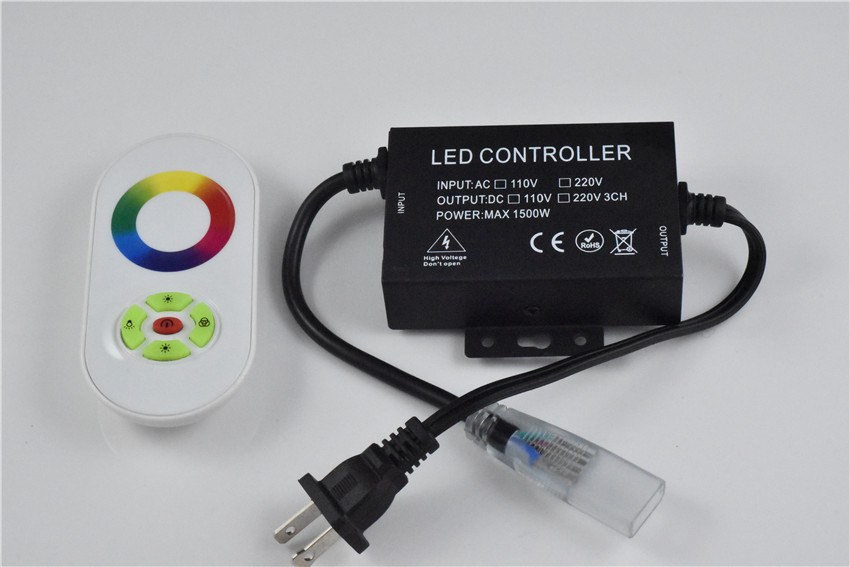

CE&ROHS led strip high voltage 220V led rgb strip rf controller

Summary


led controller



The procuct is a smart LED controller using wireless RF remote control color and brightness variations of the high-pressure lamps.the choice of color,pattern and pace of change can be carried out by using the remote control RGB lamps;while dimming,power-down memory function.the appearance of fine products,easy to use and can meet the application requirements of a variety of high-pressure light bar.

Technical parameters

  1. working voltage:AC100-130V & 210-230V
  2. Output controller:3 circuit(R/G/B)
  3. Control current:3A/circuits
  4. Connection method :Common anode
  5. Dimension: L90*W70*H28
  6. Receiving Range:20meters

led controller

Features



1.The newest PWM control technology,delicate light performance,no flicker.

2.More than 50 meters RF remote control distance.

3.Color mode changes and more flexible control.

4.Multi-type menory functions for color,modes,speed,and brightness.

5.Smart appearance,standard in put and output port,easy installation and high cost performance.

Applications

1. Construction decoration:commercial buildings,airports or subways.

2. Indoor decoration:hotels,shopping malls,squares,restaurants,bars,houses.

3. Outdoor decoration:advertising boards,parks,bridges,roads and overpasses,scenic spots.

4. Others:decorating for motor vehicles,samples reveal ark and the places needing RGB lights.

Modes tables

1

Auto color changing

9

Purple color jumps to change

2

Three colors jumps to change

10

Yellow color jumps to change

3

Seven colors jumps to change

11

Cyan color jumps to change

4

Three colors

jumps to gradual change

12

White color jumps to change

5

Seven colors

jumps to gradual change

13

Red/blue light twinkles alternately

6

Red color jumps to change

14

Blue/Green light twinkles alternately

7

Blue color jumps to change

15

Red/Green light twinkles alternately

8

Green color jumps to change

16

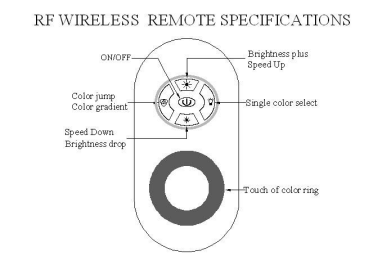

8 grades of brightness to adjust by pressing  speed down and up key
