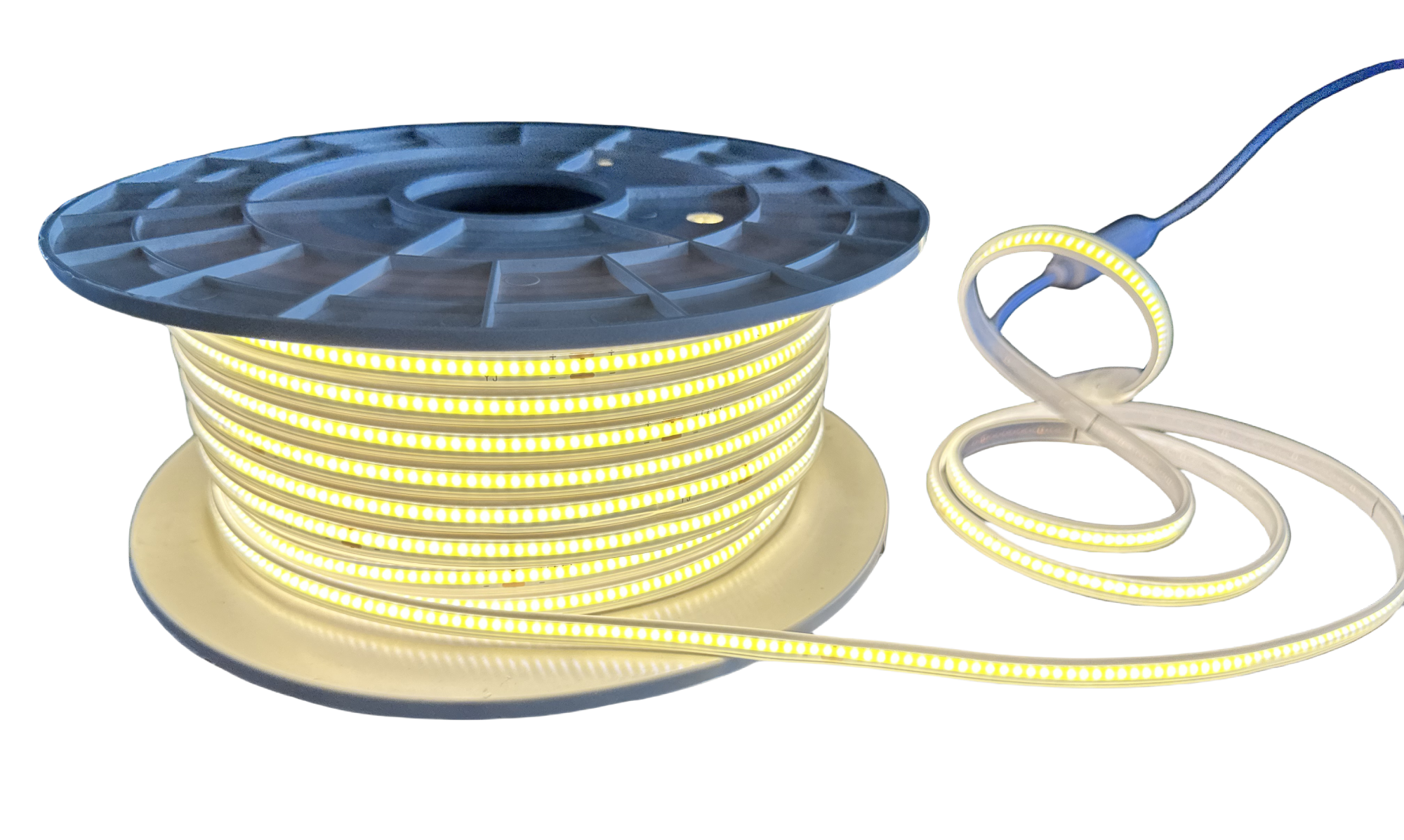

AC220V 230V Thin size 10*4mm 288 Chips Cob Flexible Led Strip lights

YH-HRF288COB220-WWT

minimum order:

1 meter

Supply Ability:

1000000.0meter / Month

Country of Origin:

Shenzhen

Quantity:

Contact Now

add to cart

Description

What is COB?

COB, short for Chip-on- Board, is a soldering method that directly mounts

multiple chips directly onto a metal-based printed circuit board.

The original way is SMD on PCB, this new way to reduce material and cost

to achieve high efficiency lighting products.

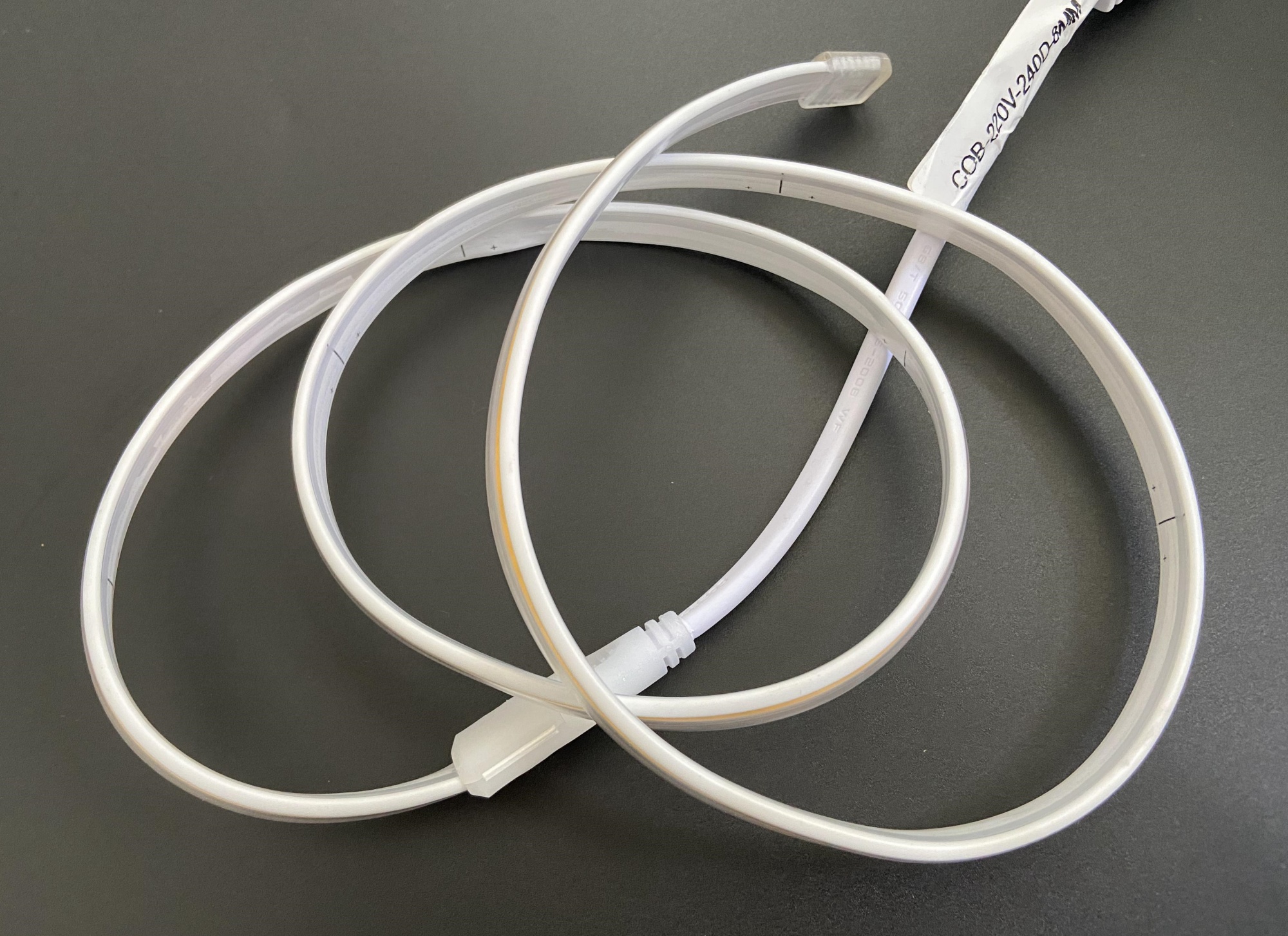

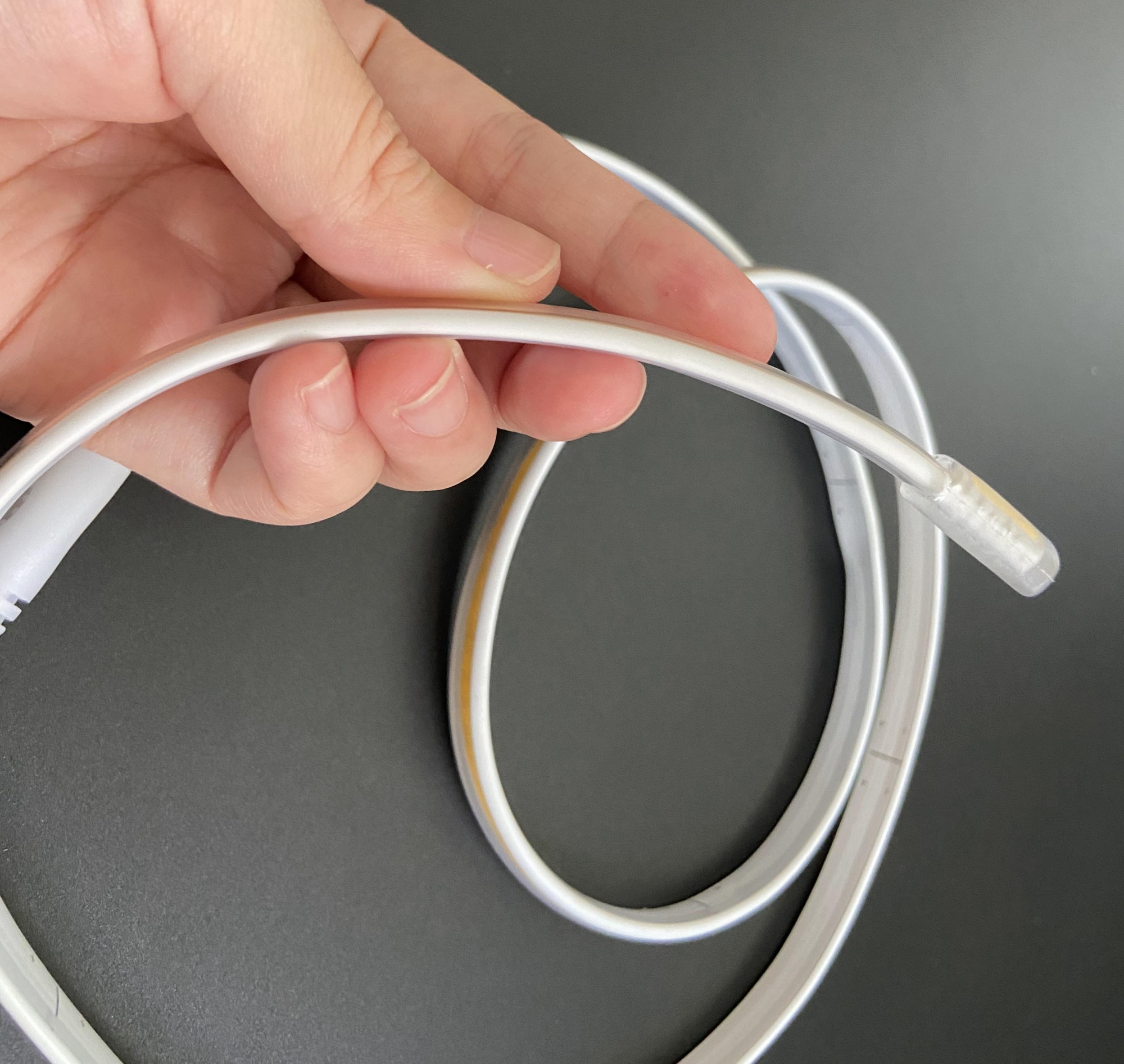

What is COB tape light?

COB light led strip, chips directly mounted on a flexible PCB and encapsulated with fluorescent tube to achieve light beam line effect.

This beam effect of led strip lights cob is more soft and looks dotless.

This is AC220V contious line cob light led strip, could be 50meters to be one length.

Different with original way of mounting SMD to PCB, it is save material cost and machine fee to achieve high efficiency and high performance strip lighting products.

Specifications

• Model Number: YH-HRF288COB220-XX

• Input Voltage: AC220-240V

• Beam Angle: 140°

• Chips Qty: 288chips/meter

• Power: 10Watts/meter

• Cut Unit: 50cm

•Luminous flux: 700-800lm/meter

•IP Grade: IP65 waterproof

•Dimension: 10*4mm (W*H)

•Available Colors: 2700K, 3000K, 4000K,

6000K, Red, Blue, Green

•Operating Temperature: -20°C to +50°C

•Package: 50meters/roll, 2rolls/carton

•Certificates: CE

•Warranty: 2 Years

How to make AC220V COB led 3000K?

Step 1: Resistors on PCB

Step 2: Chips with Tin Paste on PCB

Step 3: Reflow-High temperature for
finished PCB with chips and resistors

Step 4: QC test for Semi-finished COB strip light

Step 5: Fluorescent Powder glue onto PCB

Step 6: Put glued cob led strip into the oven

Step 7: Cover PVC of PCB to finish production

Competitive Advantages

1. Uniform Light Distribution

Compare with SMD tape light, COB led 3000k produce an evenly distributed light output, ensuring a uniform and consistent illumination without light spots.

This uniformity in lighting enhances the visual appeal and creates a pleasant lighting environment. With SMD tape light, its bigger diode are too dazzling to our eyes even we could not eyes on diodes directly for long time.

But with COB light led strip, it is more soft and uniform light effect. It is eyes-caring to install COB tape light for our lighting decorations.

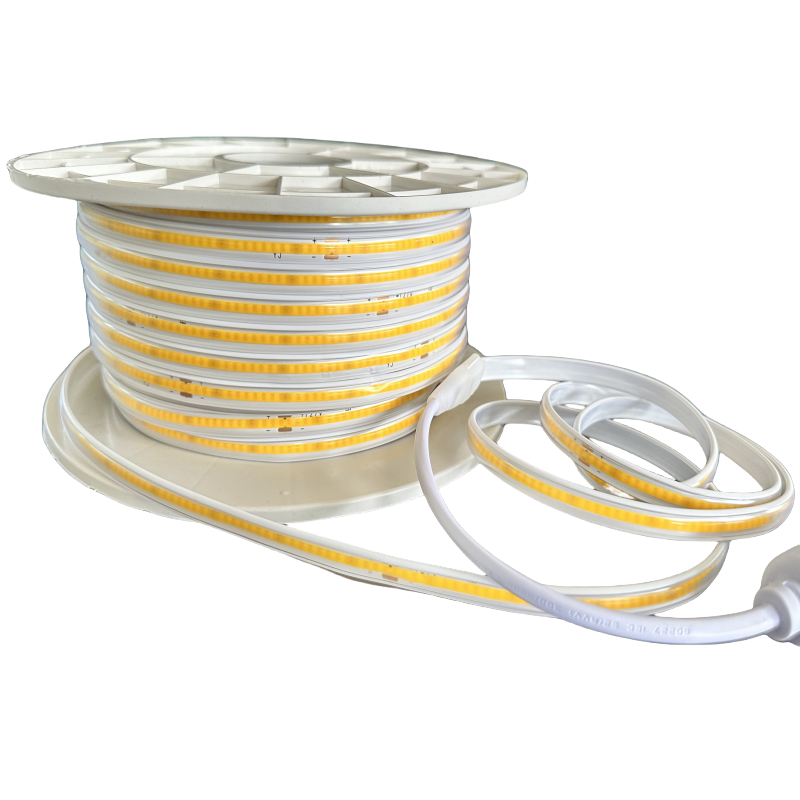

cob light led strip

2. Cost-Effective

Our led strip lights cob utilize advanced manufacturing techniques that result in a cost-effective solution.

By using wire-free technology, the use of copper wire and SMD components is reduced, reducing material costs and labor requirements.

This leads to a lower overall product price, making it more affordable for customers.

3. High Luminance and Efficient Power

COB light led strip offer high luminance and power output, providing a brighter and more impactful lighting experience.

The use of high-efficiency LED chips ensures that the light output is maximized while using less power, making it a more environmentally friendly lighting solution.

4. Easy Installation

LED Strip lights cob feature a new connection method that without the need for using pins during installation.

This makes the installation process faster, easier, and more convenient, reducing the time and effort required for installation.

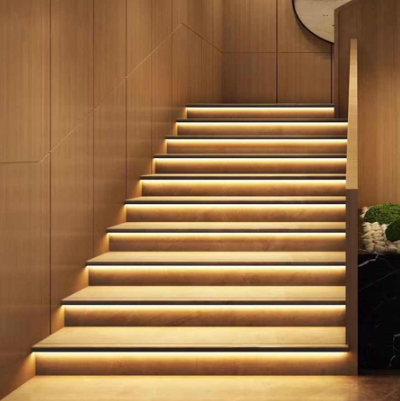

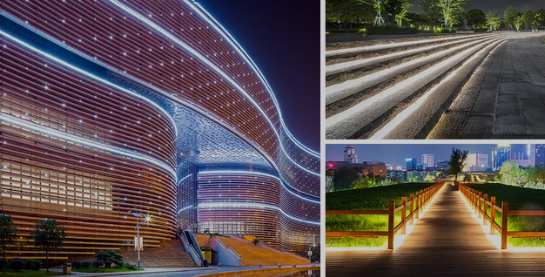

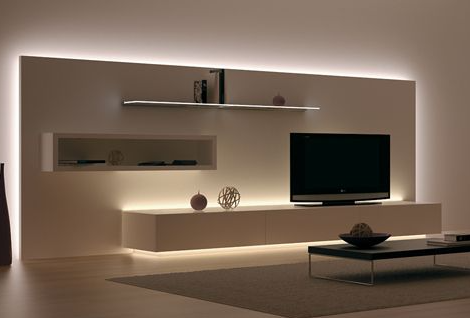

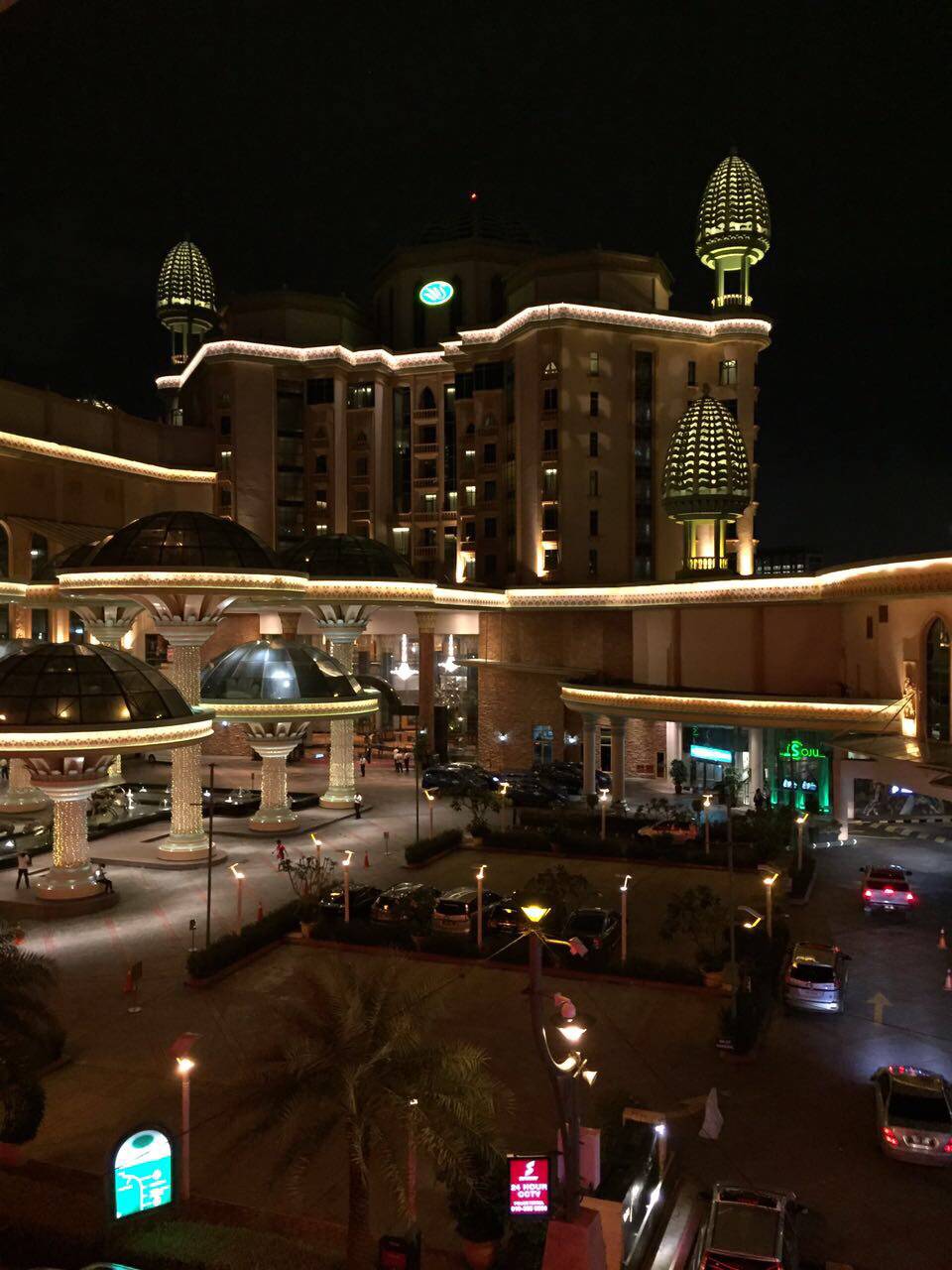

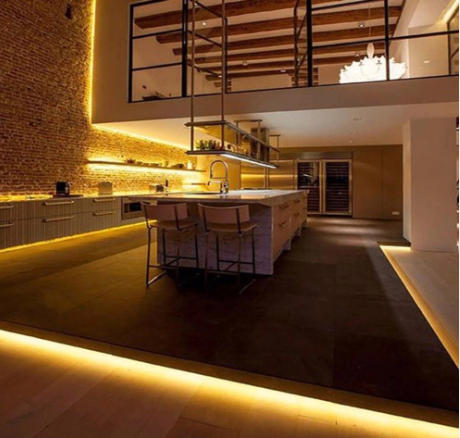

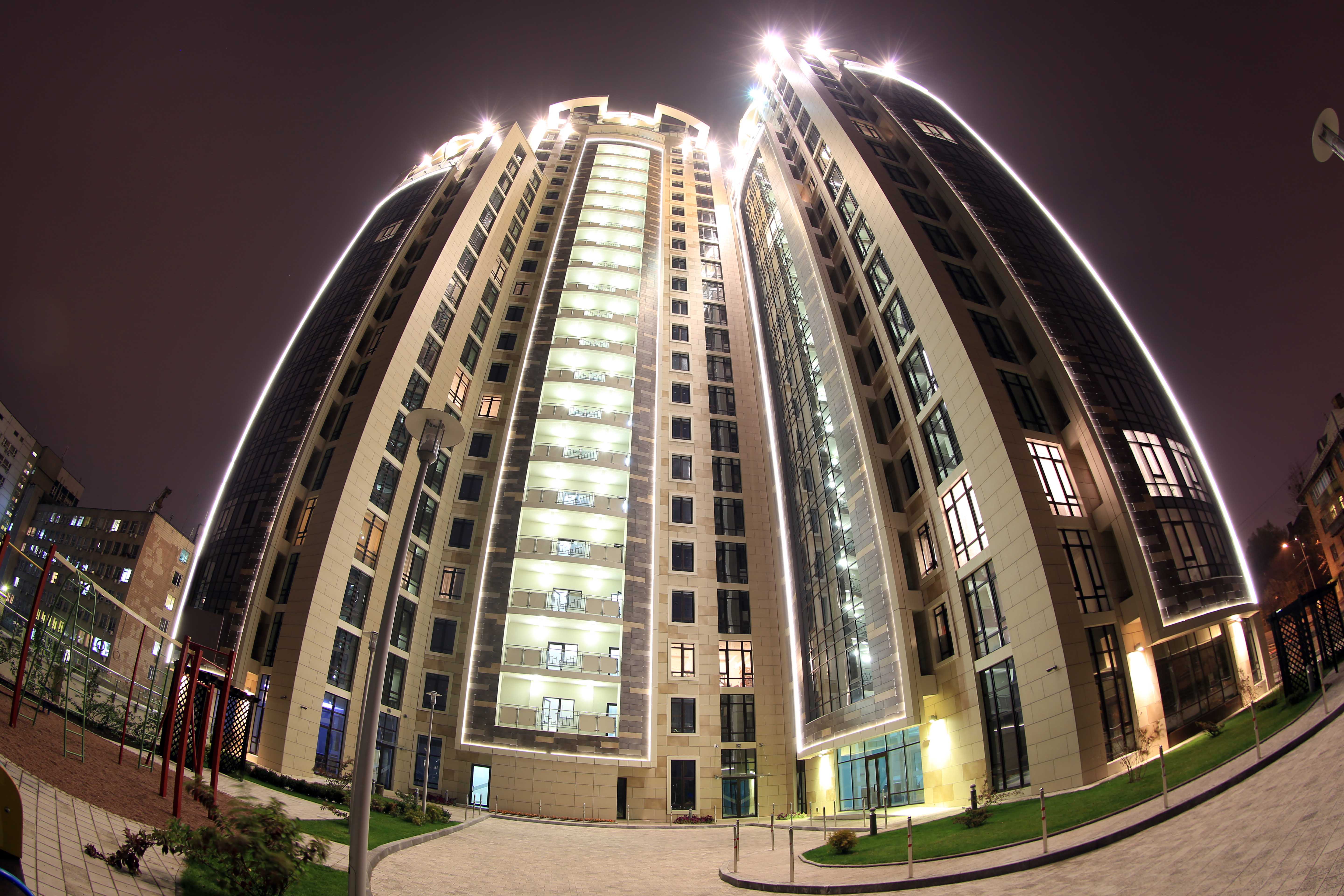

5. Versatile Application

The 50cm cutting unit of cob led 3000k offers flexibility in indoor and outdoor decorative lighting projects.

This allows for quick and easy installation, providing a convenient solution for various lighting projects needs.

Accessories of COB Light led strip

How to make connections for COB LED 3000K?

Packaging

Our Certificates

Product Testing

All of our led strip light cob are strictly go though multiple testing steps to ensuring quality. Our raw materials testing phase begins with a thorough examination of the incoming LEDs, resistors, and other components in our

laboratory equipment.

Once the assembly of led strip lights cob begins, we conduct rigorous testing on the semi-finished products. This stage involves checks for electrical continuity, uniformity of light output, and temperature rise under

operationalconditions.

Finally, before each cob led 3000k packing, it undergoes a comprehensive finished products testing phase. This includes checks for compliance with international safety standards, as well as an assessment of the

overall performance and durability.

cob light led strip

Why choose BET to be your LED Strip lights cob Supplier

We BET understand the importance of choosing a reliable and trustworthy supplier. Our company has built its reputation on providing high-quality products and services to our customers, and we take pride in being a relaible partner in your business endeavos.

Quality Prodcuts in Shenzhen

BET offers a wide range of products, all of which are manufactured to the highest standards. All our products we conduct regular checks and tests to ensure consistent performance. All our cob light led strip has pass CE, ETL test.

Competitive Price

We provide our partners with our competitive wholesale prieces without compromising on quality, which help you save money while meeting your business needs.

Fast Delivery

We provide fast delivery with automated production lines and a professional team. Small order takes 3-10days and bulk order takes 10-25days.

Customized Services

We understand that every customer has unique needs, and that's why we offer fully customized services for our led strip lights cob. Whether its the lenght, specifications, color, color rendering index, lumen output, power rating, or packaging, we can tailor our products to meet your specific requirements.

Low MOQ

We support our customers free sample of cob light led strip or small trial order to test market. This will help our partners more easier to expand the local market.

After-sales Service

We are COB led strip 230v manufacturer. Our dedicated team of experts is available 24/7 to assist you with any questions or issues you may have with our products. Whether it's a technical issue, a question about product usage, or a request for additional information, we're here to help.

RFQ

1. What is your MOQ for this led strip lights cob?

No MOQ, we support with small trial order to help our customers to test local market.

2. Can you provide free samples of cob light led strip?

Yes, we can provide free samples for our customers to test local market.

3. How is your package of this cob led 3000k?

It is 50meters per roll, 2 rolls to be packed to a plastic reel and then packed into an carton.

4. What is your delivery time for this led strip lights cob?

Small order is 3-10days; bulk order is 10-25days.

5. How to ship the goods? And how many days to be delivered?

Shipping ways depend on our customers' demand. If go by air, like DHL/Fedex/UPS, it take about 5-10days.

If go by sea, it take about 24-45days according to the delivery address.

6. This cob light led strip is cuttable?

Yes, it is cuttable. Every 1.64Ft/50cm Unit cut.

7. Is this cob light led strip dimmable?

Yes, it is dimmable. You need connect with dimmer to make its dim function.

8. Can we make customized design for this led strip lights cob?

Yes, the CCT, colors, CRI, length, package could be customized on your requirement.

9. Is this cob light led strip waterproof?

Yes, it is waterproof IP65 after applying glue on each connectos and end caps. But this led strip lights cob could not be used inside of water or pool as it is AC220V voltage.
