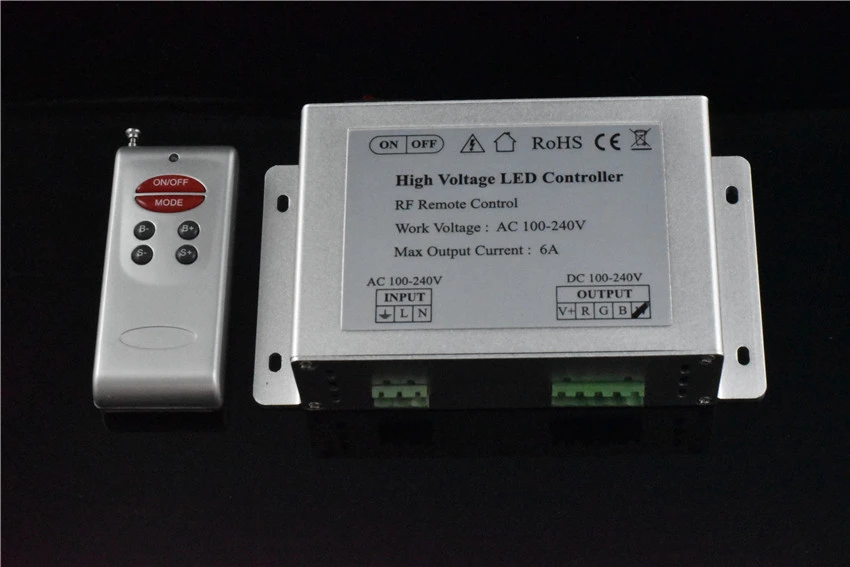

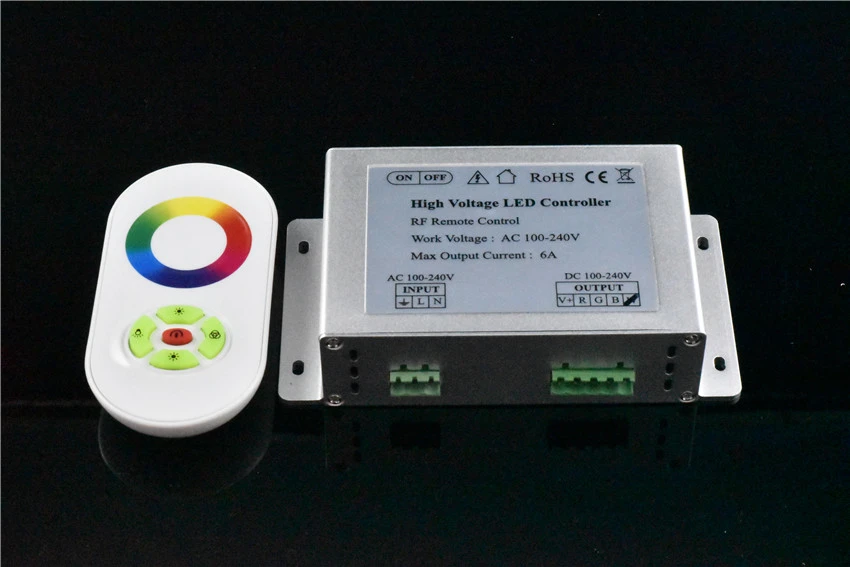

6A RGB Controller 220v or 110v led strip light use high voltage rgb led controller

YH-HC04--6A
minimum order:
20 pieces
Supply Ability:
10000pieces / Week
Country of Origin:
Shenzhen, Guangdong
Quantity:
Contact Now
add to cart

6A RGB Controller 220v or 110v led strip light use high voltage rgb led controller

Summary

led strip controller
led strip controller



The procuct is a smart LED controller using wireless RF remote control color and brightness variations of the high-pressure lamps.the choice of color,pattern and pace of change can be carried out by using the remote control RGB lamps;while dimming,power-down memory function.the appearance of fine products,easy to use and can meet the application requirements of a variety of high-pressure light bar.

Technical parameters

Controller

Output channels(Optional)

R G B  3Channels

Supply voltage

AC 100-240V

Loadable current

6A

Output power

660W(AC110V)~1320W(AC220V)

Control method

RF remote control

Connection mode

Common anode

Changing pattern

14

Dimmering mothod

PWM

Grey steps

8

Protection

The power input polarity protection

Product size

L148×W83×H35

Remote

Working voltage

DC 12V

Remote control way

RF

Controlable distance

More than 50 meter

Battery types

Alkaline batteries,23A 12V

Key Number

6 Keys

Product size

L85×W37×H16

Whole machine

Working temperature

-20~60 ℃

Ldentification

RoHS

Weight

420g

Packing size

L168×W160×H42mm

Features



1.The newest PWM control technology,delicate light performance,no flicker.

2.More than 50 meters RF remote control distance.

3.Color mode changes and more flexible control.

4.Multi-type menory functions for color,modes,speed,and brightness.

5.Smart appearance,standard in put and output port,easy installation and high cost performance.

Applications

1. Construction decoration:commercial buildings,airports or subways.

2. Indoor decoration:hotels,shopping malls,squares,restaurants,bars,houses.

3. Outdoor decoration:advertising boards,parks,bridges,roads and overpasses,scenic spots.

4. Others:decorating for motor vehicles,samples reveal ark and the places needing RGB lights.

Modes tables

Ltem

Mode

Ltem

Mode

1

Static red

8

Static RGB

2

Static green

9

Static RGB white

3

Static blue

10

4 base color jumpy changing

4

Static white

11

9 base color jumpy changing

5

Static yellow

12

RGBW combining color jumpy changing

6

Static cyan

13

4base color fade change

7

Static purple

14

9base color fade change
